ANTLR3_BASE_TREE_ADAPTOR_struct Struct Reference

#include <antlr3basetreeadaptor.h>

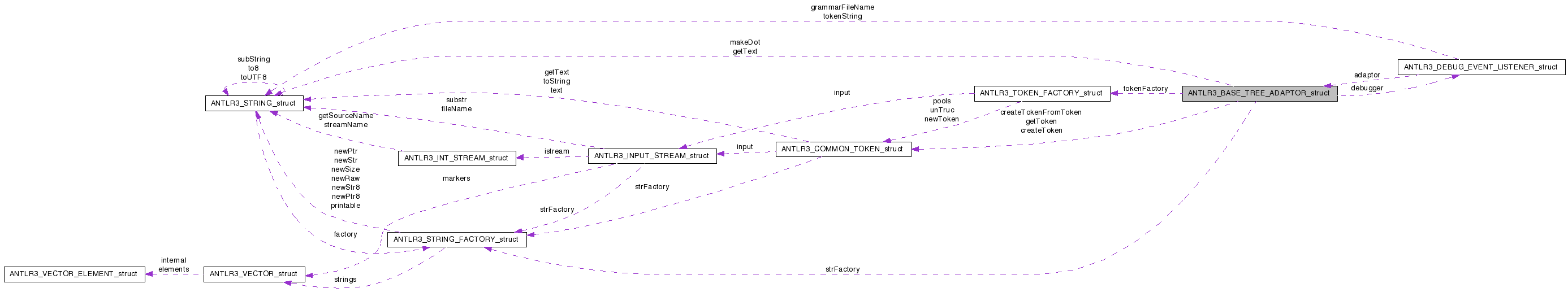

Collaboration diagram for ANTLR3_BASE_TREE_ADAPTOR_struct:

Collaboration graph
[legend]

Data Fields

void(* addChild )(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, void *t, void *child)
void(* addChildToken )(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, void *t, pANTLR3_COMMON_TOKEN child)
void *(* becomeRoot )(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, void *newRoot, void *oldRoot)
void *(* becomeRootToken )(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, void *newRoot, void *oldRoot)
void *(* create )(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, pANTLR3_COMMON_TOKEN payload)
pANTLR3_COMMON_TOKEN(* createToken )(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, ANTLR3_UINT32 tokenType, pANTLR3_UINT8 text)
pANTLR3_COMMON_TOKEN(* createTokenFromToken )(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, pANTLR3_COMMON_TOKEN fromToken)
void *(* createTypeText )(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, ANTLR3_UINT32 tokenType, pANTLR3_UINT8 text)
void *(* createTypeToken )(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, ANTLR3_UINT32 tokenType, pANTLR3_COMMON_TOKEN fromToken)
void *(* createTypeTokenText )(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, ANTLR3_UINT32 tokenType, pANTLR3_COMMON_TOKEN fromToken, pANTLR3_UINT8 text)
pANTLR3_DEBUG_EVENT_LISTENER debugger
 If set to something other than NULL, then this structure is points to an instance of the debugger interface.
void(* deleteChild )(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, void *t, ANTLR3_UINT32 i)
void *(* dupNode )(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, void *treeNode)
void *(* dupTree )(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, void *tree)
void *(* dupTreeTT )(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, void *t, void *tree)
void *(* errorNode )(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, pANTLR3_TOKEN_STREAM tnstream, pANTLR3_COMMON_TOKEN startToken, pANTLR3_COMMON_TOKEN stopToken, pANTLR3_EXCEPTION e)
void(* free )(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor)
void *(* getChild )(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, void *t, ANTLR3_UINT32 i)
ANTLR3_UINT32(* getChildCount )(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, void *)
ANTLR3_INT32(* getChildIndex )(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, void *t)
void *(* getParent )(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, void *child)
pANTLR3_STRING(* getText )(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, void *t)
pANTLR3_COMMON_TOKEN(* getToken )(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, void *t)
ANTLR3_MARKER(* getTokenStartIndex )(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, void *t)
ANTLR3_MARKER(* getTokenStopIndex )(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, void *t)
ANTLR3_UINT32(* getType )(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, void *t)
ANTLR3_UINT32(* getUniqueID )(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, void *)
ANTLR3_BOOLEAN(* isNilNode )(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, void *t)
pANTLR3_STRING(* makeDot )(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, void *theTree)
 Produce a DOT (see graphviz freeware suite) from a base tree.
void *(* nilNode )(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor)
void(* replaceChildren )(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, void *parent, ANTLR3_INT32 startChildIndex, ANTLR3_INT32 stopChildIndex, void *t)
 Replace from start to stop child index of parent with t, which might be a list.
void *(* rulePostProcessing )(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, void *root)
void(* setChild )(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, void *t, ANTLR3_UINT32 i, void *child)
void(* setChildIndex )(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, void *t, ANTLR3_UINT32 i)
void(* setDebugEventListener )(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, pANTLR3_DEBUG_EVENT_LISTENER debugger)
void(* setParent )(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, void *child, void *parent)
void(* setText )(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, pANTLR3_STRING t)
void(* setText8 )(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, pANTLR3_UINT8 t)
void(* setTokenBoundaries )(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, void *t, pANTLR3_COMMON_TOKEN startToken, pANTLR3_COMMON_TOKEN stopToken)
void(* setType )(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, void *t, ANTLR3_UINT32 type)
pANTLR3_STRING_FACTORY strFactory
 We need a string factory for creating imaginary tokens, we take this from the stream we are supplied to walk.
void * super
 Pointer to any enclosing structure/interface that contains this structure.
pANTLR3_TOKEN_FACTORY tokenFactory

Field Documentation

void(* ANTLR3_BASE_TREE_ADAPTOR_struct::addChild)(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, void *t, void *child)

Referenced by addChildToken(), antlr3BaseTreeAdaptorInit(), dbgAddChildToken(), and dupTreeTT().

void(* ANTLR3_BASE_TREE_ADAPTOR_struct::addChildToken)(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, void *t, pANTLR3_COMMON_TOKEN child)

Referenced by antlr3BaseTreeAdaptorInit().

void*(* ANTLR3_BASE_TREE_ADAPTOR_struct::becomeRoot)(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, void *newRoot, void *oldRoot)

Referenced by antlr3BaseTreeAdaptorInit(), becomeRootToken(), and dbgBecomeRootToken().

void*(* ANTLR3_BASE_TREE_ADAPTOR_struct::becomeRootToken)(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, void *newRoot, void *oldRoot)

Referenced by antlr3BaseTreeAdaptorInit().

void*(* ANTLR3_BASE_TREE_ADAPTOR_struct::create)(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, pANTLR3_COMMON_TOKEN payload)

Referenced by addChildToken(), ANTLR3_TREE_ADAPTORDebugNew(), ANTLR3_TREE_ADAPTORNew(), becomeRootToken(), createTypeText(), createTypeToken(), createTypeTokenText(), dbgAddChildToken(), dbgBecomeRootToken(), dbgNil(), nextNodeToken(), nilNode(), and setDebugEventListener().

pANTLR3_COMMON_TOKEN(* ANTLR3_BASE_TREE_ADAPTOR_struct::createToken)(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, ANTLR3_UINT32 tokenType, pANTLR3_UINT8 text)

Referenced by ANTLR3_TREE_ADAPTORNew(), and createTypeText().

pANTLR3_COMMON_TOKEN(* ANTLR3_BASE_TREE_ADAPTOR_struct::createTokenFromToken)(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, pANTLR3_COMMON_TOKEN fromToken)

Referenced by ANTLR3_TREE_ADAPTORNew(), createTypeToken(), and createTypeTokenText().

void*(* ANTLR3_BASE_TREE_ADAPTOR_struct::createTypeText)(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, ANTLR3_UINT32 tokenType, pANTLR3_UINT8 text)

Referenced by antlr3BaseTreeAdaptorInit(), and errorNode().

void*(* ANTLR3_BASE_TREE_ADAPTOR_struct::createTypeToken)(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, ANTLR3_UINT32 tokenType, pANTLR3_COMMON_TOKEN fromToken)

Referenced by antlr3BaseTreeAdaptorInit().

void*(* ANTLR3_BASE_TREE_ADAPTOR_struct::createTypeTokenText)(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, ANTLR3_UINT32 tokenType, pANTLR3_COMMON_TOKEN fromToken, pANTLR3_UINT8 text)

Referenced by antlr3BaseTreeAdaptorInit().

pANTLR3_DEBUG_EVENT_LISTENER ANTLR3_BASE_TREE_ADAPTOR_struct::debugger

If set to something other than NULL, then this structure is points to an instance of the debugger interface.

In general, the debugger is only referenced internally in recovery/error operations so that it does not cause overhead by having to check this pointer in every function/method

Referenced by dbgAddChild(), dbgAddChildToken(), dbgBecomeRoot(), dbgBecomeRootToken(), dbgCreate(), dbgCreateTypeText(), dbgCreateTypeToken(), dbgCreateTypeTokenText(), dbgNil(), dbgSetTokenBoundaries(), and simulateTreeConstruction().

void(* ANTLR3_BASE_TREE_ADAPTOR_struct::deleteChild)(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, void *t, ANTLR3_UINT32 i)

Referenced by ANTLR3_TREE_ADAPTORNew().

void*(* ANTLR3_BASE_TREE_ADAPTOR_struct::dupNode)(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, void *treeNode)

Referenced by ANTLR3_TREE_ADAPTORNew(), dupTree(), nextNode(), and toTreeNode().

void*(* ANTLR3_BASE_TREE_ADAPTOR_struct::dupTree)(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, void *tree)

Referenced by antlr3BaseTreeAdaptorInit().

void*(* ANTLR3_BASE_TREE_ADAPTOR_struct::dupTreeTT)(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, void *t, void *tree)

Referenced by antlr3BaseTreeAdaptorInit(), dbgDupTree(), dupTree(), and dupTreeTT().

void*(* ANTLR3_BASE_TREE_ADAPTOR_struct::errorNode)(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, pANTLR3_TOKEN_STREAM tnstream, pANTLR3_COMMON_TOKEN startToken, pANTLR3_COMMON_TOKEN stopToken, pANTLR3_EXCEPTION e)

Referenced by ANTLR3_TREE_ADAPTORNew().

void(* ANTLR3_BASE_TREE_ADAPTOR_struct::free)(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor)

Referenced by ANTLR3_TREE_ADAPTORNew(), antlr3CommonTreeNodeStreamFree(), and antlr3CommonTreeNodeStreamNew().

void*(* ANTLR3_BASE_TREE_ADAPTOR_struct::getChild)(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, void *t, ANTLR3_UINT32 i)

Referenced by ANTLR3_TREE_ADAPTORNew(), antlr3BaseTreeAdaptorInit(), defineDotEdges(), defineDotNodes(), dupTreeTT(), fillBuffer(), and simulateTreeConstruction().

ANTLR3_UINT32(* ANTLR3_BASE_TREE_ADAPTOR_struct::getChildCount)(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, void *)

Referenced by ANTLR3_TREE_ADAPTORNew(), antlr3BaseTreeAdaptorInit(), defineDotEdges(), defineDotNodes(), dupTreeTT(), and simulateTreeConstruction().

ANTLR3_INT32(* ANTLR3_BASE_TREE_ADAPTOR_struct::getChildIndex)(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, void *t)

Referenced by ANTLR3_TREE_ADAPTORNew().

void*(* ANTLR3_BASE_TREE_ADAPTOR_struct::getParent)(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, void *child)

Referenced by ANTLR3_TREE_ADAPTORNew().

pANTLR3_STRING(* ANTLR3_BASE_TREE_ADAPTOR_struct::getText)(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, void *t)

Referenced by ANTLR3_TREE_ADAPTORNew(), antlr3BaseTreeAdaptorInit(), defineDotEdges(), defineDotNodes(), makeDot(), and serializeNode().

pANTLR3_COMMON_TOKEN(* ANTLR3_BASE_TREE_ADAPTOR_struct::getToken)(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, void *t)

Referenced by serializeNode().

ANTLR3_MARKER(* ANTLR3_BASE_TREE_ADAPTOR_struct::getTokenStartIndex)(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, void *t)

Referenced by ANTLR3_TREE_ADAPTORNew(), and serializeNode().

ANTLR3_MARKER(* ANTLR3_BASE_TREE_ADAPTOR_struct::getTokenStopIndex)(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, void *t)

Referenced by ANTLR3_TREE_ADAPTORNew().

ANTLR3_UINT32(* ANTLR3_BASE_TREE_ADAPTOR_struct::getType)(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, void *t)

Referenced by ANTLR3_TREE_ADAPTORNew(), antlr3BaseTreeAdaptorInit(), and serializeNode().

ANTLR3_UINT32(* ANTLR3_BASE_TREE_ADAPTOR_struct::getUniqueID)(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, void *)

Referenced by antlr3BaseTreeAdaptorInit(), and serializeNode().

ANTLR3_BOOLEAN(* ANTLR3_BASE_TREE_ADAPTOR_struct::isNilNode)(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, void *t)

Referenced by antlr3BaseTreeAdaptorInit(), and fillBuffer().

pANTLR3_STRING(* ANTLR3_BASE_TREE_ADAPTOR_struct::makeDot)(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, void *theTree)

Produce a DOT (see graphviz freeware suite) from a base tree.

Referenced by antlr3BaseTreeAdaptorInit().

void*(* ANTLR3_BASE_TREE_ADAPTOR_struct::nilNode)(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor)

Referenced by antlr3BaseTreeAdaptorInit().

void(* ANTLR3_BASE_TREE_ADAPTOR_struct::replaceChildren)(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, void *parent, ANTLR3_INT32 startChildIndex, ANTLR3_INT32 stopChildIndex, void *t)

Replace from start to stop child index of parent with t, which might be a list.

Number of children may be different after this call.

If parent is null, don't do anything; must be at root of overall tree. Can't replace whatever points to the parent externally. Do nothing.

Referenced by ANTLR3_TREE_ADAPTORNew().

void*(* ANTLR3_BASE_TREE_ADAPTOR_struct::rulePostProcessing)(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, void *root)

Referenced by antlr3BaseTreeAdaptorInit().

void(* ANTLR3_BASE_TREE_ADAPTOR_struct::setChild)(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, void *t, ANTLR3_UINT32 i, void *child)

Referenced by ANTLR3_TREE_ADAPTORNew().

void(* ANTLR3_BASE_TREE_ADAPTOR_struct::setChildIndex)(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, void *t, ANTLR3_UINT32 i)

Referenced by ANTLR3_TREE_ADAPTORNew(), and dupTreeTT().

void(* ANTLR3_BASE_TREE_ADAPTOR_struct::setDebugEventListener)(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, pANTLR3_DEBUG_EVENT_LISTENER debugger)

Referenced by ANTLR3_TREE_ADAPTORNew().

void(* ANTLR3_BASE_TREE_ADAPTOR_struct::setParent)(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, void *child, void *parent)

Referenced by ANTLR3_TREE_ADAPTORNew(), and dupTreeTT().

void(* ANTLR3_BASE_TREE_ADAPTOR_struct::setText)(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, pANTLR3_STRING t)

Referenced by antlr3BaseTreeAdaptorInit().

void(* ANTLR3_BASE_TREE_ADAPTOR_struct::setText8)(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, pANTLR3_UINT8 t)

Referenced by antlr3BaseTreeAdaptorInit().

void(* ANTLR3_BASE_TREE_ADAPTOR_struct::setTokenBoundaries)(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, void *t, pANTLR3_COMMON_TOKEN startToken, pANTLR3_COMMON_TOKEN stopToken)

Referenced by ANTLR3_TREE_ADAPTORDebugNew(), ANTLR3_TREE_ADAPTORNew(), and setDebugEventListener().

void(* ANTLR3_BASE_TREE_ADAPTOR_struct::setType)(struct ANTLR3_BASE_TREE_ADAPTOR_struct *adaptor, void *t, ANTLR3_UINT32 type)

Referenced by antlr3BaseTreeAdaptorInit().

pANTLR3_STRING_FACTORY ANTLR3_BASE_TREE_ADAPTOR_struct::strFactory

We need a string factory for creating imaginary tokens, we take this from the stream we are supplied to walk.

Referenced by ANTLR3_TREE_ADAPTORNew(), createToken(), createTokenFromToken(), and makeDot().

void* ANTLR3_BASE_TREE_ADAPTOR_struct::super

Pointer to any enclosing structure/interface that contains this structure.

Referenced by add(), ANTLR3_TREE_ADAPTORNew(), create(), ctaFree(), freeNodeRS(), and freeRS().

pANTLR3_TOKEN_FACTORY ANTLR3_BASE_TREE_ADAPTOR_struct::tokenFactory

Referenced by ANTLR3_TREE_ADAPTORNew(), createToken(), createTokenFromToken(), and ctaFree().

The documentation for this struct was generated from the following file:
